XD Energy-Saving Electric Vacuum Pump

XD Energy-Saving Electric Vacuum Pump

XD Energy-Saving Electric Vacuum Pump is a high-performance solution designed for energy-efficient and stable operation in industrial and laboratory settings. Engineered to handle rough and low vacuum applications, this pump is ideal for processes involving gas extraction, drying, degassing, and vacuum sealing.

This model features an energy-saving motor and delivers efficient vacuum performance, making it suitable for long-term use with minimal power consumption. Upon cold oil startup, the pump may produce noticeable noise for the first 1–2 minutes, which is a normal part of the startup process.

To ensure optimal function when handling condensable vapors such as water vapor, it is recommended to run the pump with the air inlet closed for 30 minutes before use. This allows the pump to reach an operating temperature above 70°C, which is necessary for the effective removal of condensable gases.

After each use—especially when pumping moisture-laden gases—the air inlet should be closed, and the pump operated for an additional 15–30 minutes to purify the pump oil and maintain performance.

The normal temperature rise during operation is 40–60°C, so users should avoid touching heated surfaces. Built for safety, efficiency, and longevity, the XD Vacuum Pump is a trusted choice for demanding vacuum tasks.

Contact Us
  • Parameter

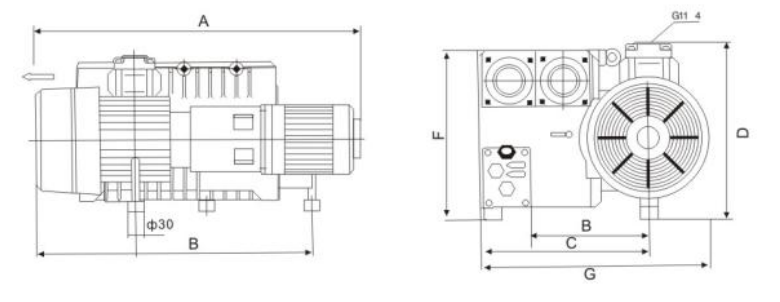

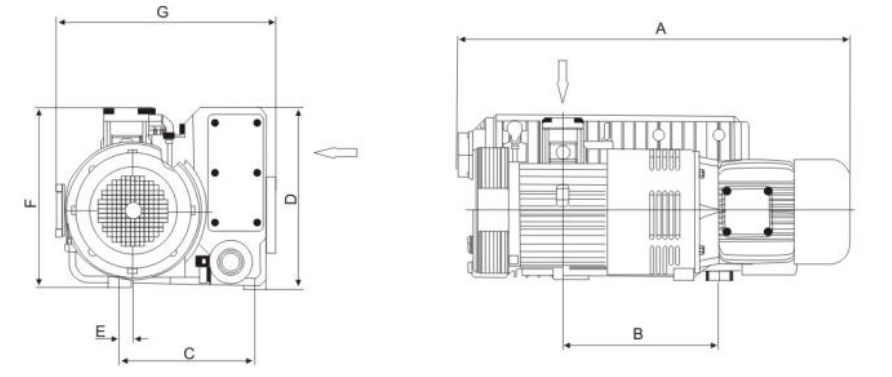

  • Installation Dimension Drawings
Parameter
Type Pumping rate(m³/h) Ultimate pressure(mbar) Motor power(kw) Motor speed (rpm) Noise (dB) Permissible water vapor pressure(mbar) Water vapor extraction(kg/h) Operating temperature(℃) Oil volume(L) Weight(kg) Air inlet thread Dimensions (L × W × H)
XD - 020 20 0.1~0.5 0.75 2880 ≤62 40 0.3 82 0.5 18 Rp3/4″ 650×300×280
XD - 040 40 0.1~0.5 1.5 1440 ≤65 40 0.6 80 1 45 Rp1/4″ 650×300×380
XD - 063 63 0.1~0.5 2.2 1440 ≤65 40 1 80 2 55 Rp1/4″ 650×430×295
XD - 080 80 0.1~0.5 2.2 1440 ≤65 40 1 80 2 60 Rp1/4″ 650×490×295
XD - 100 100 0.1~0.5 3 1440 ≤67 40 1.6 84 2 70 Rp1/4″ 720×430×395
XD - 160 160 0.1 4 1440 ≤70 40 2.5 95 5 150 Rp2″ 85×50.5×44
XD - 202 200 0.1 4.5 1440 ≤72 40 4 95 5 150 Rp2″ 85×50.5×44
XD - 250 250 0.1 5.5 1440 ≤73 40 4.5 81 7 195 Rp2″ 98×56×44
XD - 302 300 0.1 7.5 1440 ≤75 40 5 83 7 211 Rp2″ 101×56×44
XD - 630 600 0.1 22 1440 ≤80 40 8 88 20 500 Rp3″ 185×85×75
