380V Fan Aluminum Shell Three-Phase Asynchronous Motor

Home / Product / Y2 Series Three-Phase Asynchronous Motor / 380V Fan Aluminum Shell Three-Phase Asynchronous Motor

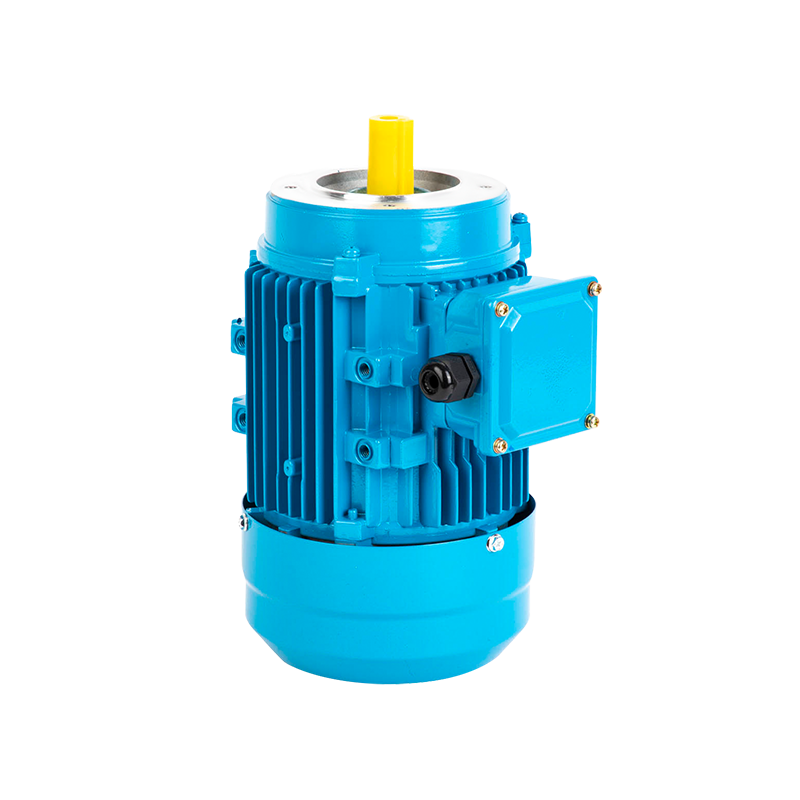

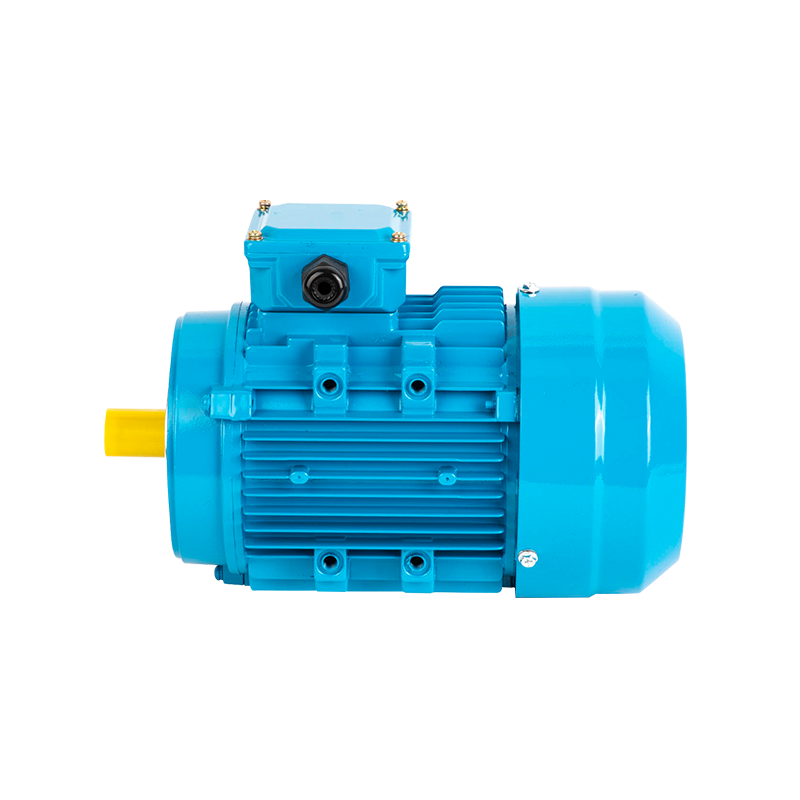

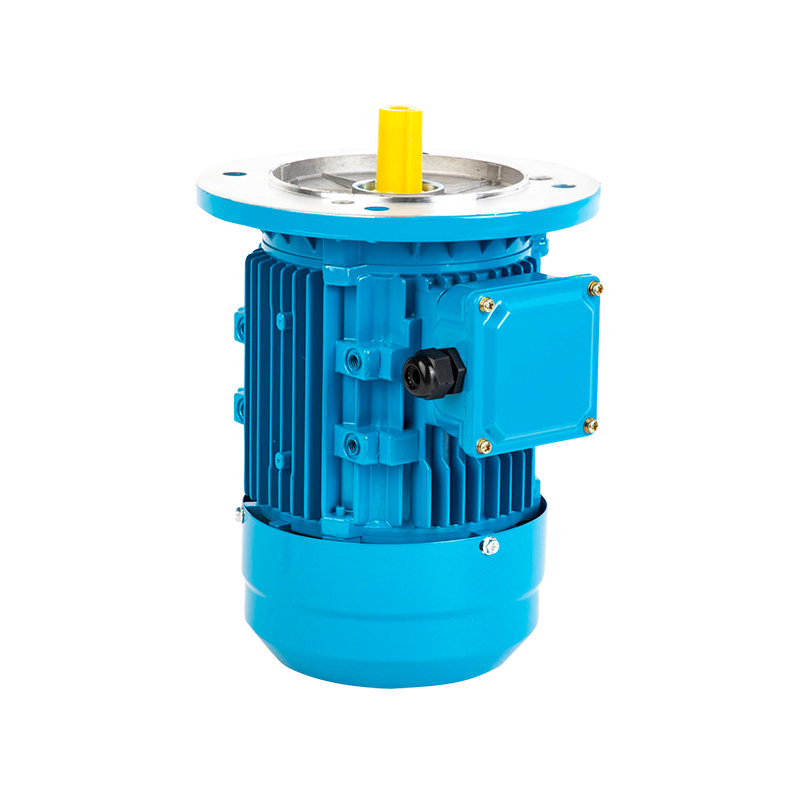

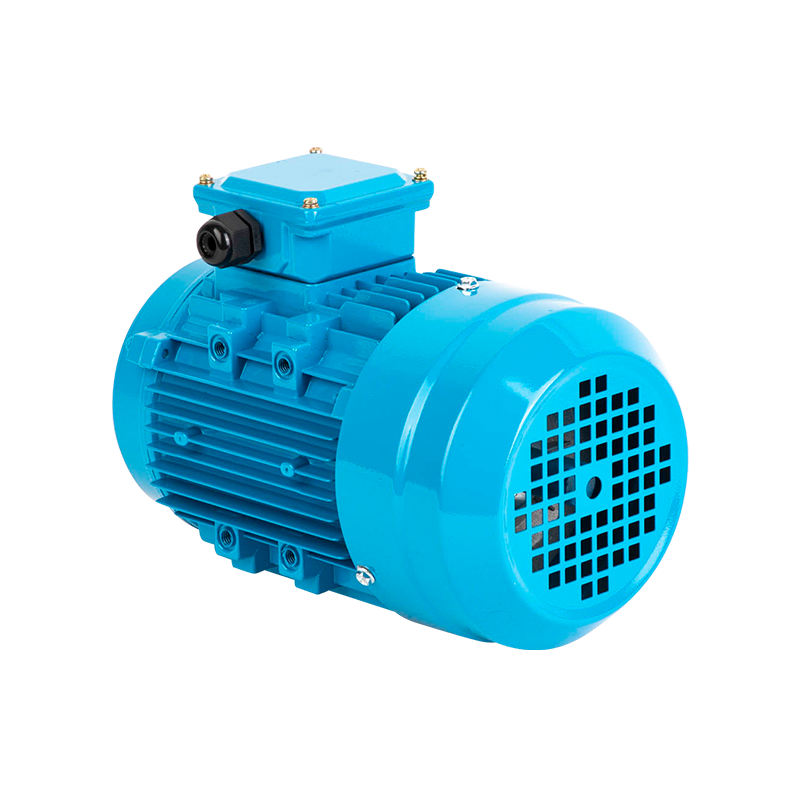

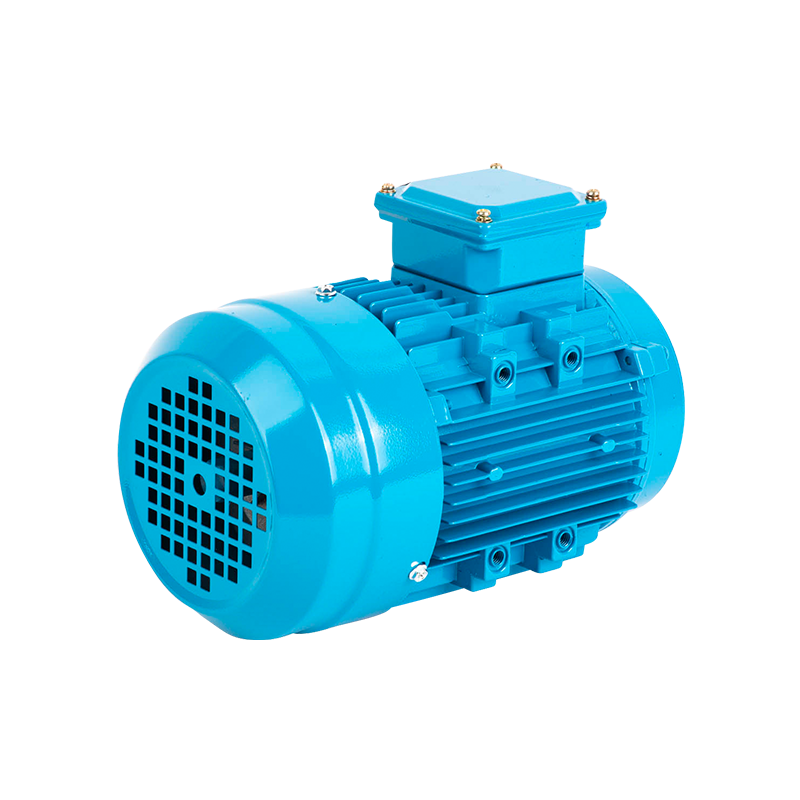

380V Fan Aluminum Shell Three-Phase Asynchronous Motor

380V Fan Aluminum Shell Three-Phase Asynchronous Motor

The 380V Fan Aluminum Shell Three-Phase Asynchronous Motor is designed for high-efficiency and reliable operation in various industrial applications. This motor is specifically engineered to power fans and other ventilation systems, ensuring fine performance and energy efficiency.

Aluminum Shell Design
One of the key features of this motor is its aluminum shell. This design not only provides good performance heat dissipation but also ensures low motor noise and more stable operation. The special processing technology used in the manufacturing of the aluminum shell enhances its durability and resistance to environmental factors.

Three-Phase Asynchronous Design
The three-phase asynchronous design of the 380V Fan Aluminum Shell Three-Phase Asynchronous Motor ensures smooth and efficient operation. This design allows the motor to start quickly and reach its full speed with relatively small energy loss. The motor's torque characteristics are well-suited for fan applications, providing the necessary power to drive the fan blades and generate strong airflow. The asynchronous nature of the motor also means that it can operate at a constant speed, regardless of the load, ensuring consistent performance and reliability.

High-Quality Components
 The stator and rotor cores are made from high-quality cold-rolled silicon steel sheets, which contribute to the motor's high efficiency, low temperature rise, and long service life. These components are selected to meet relatively high standards of performance and reliability.

Protection and Durability
The 380V Fan Aluminum Shell Three-Phase Asynchronous Motor undergoes special protection treatment, achieving a protection level of IP65. This makes it suitable for use in various industrial environments where dust and water resistance are crucial. The motor's robust construction ensures that it can withstand the rigors of continuous operation without frequent maintenance.

Efficiency and Energy Savings
This motor is designed to meet the EFF2 standard in the European Union, and can even reach the EFF1 standard if requested. Its high efficiency and energy-saving features make it idea choice for applications where reducing energy consumption is a priority. By using this motor, users can expect significant savings on their energy bills over time.

Versatile Applications
The 380V Fan Aluminum Shell Three-Phase Asynchronous Motor is suitable for a wide range of applications, including central air conditioning systems, heat pumps, refrigeration units, evaporative cooling systems, and animal husbandry. It is also ideal for cooling towers and air compressors, making it a versatile choice for high-demand industrial applications.

Easy Installation and Maintenance
Installing the 380V Fan Aluminum Shell Three-Phase Asynchronous Motor is straightforward, thanks to its design and the clear instructions provided. The motor's accessible design allows for easy inspection and maintenance, reducing downtime and ensuring that the system remains operational.

The 380V Fan Aluminum Shell Three-Phase Asynchronous Motor is a high-quality product that combines durability, efficiency, and reliability. Its aluminum shell design, high-quality components, and advanced protection features make it an good performance choice for powering fans and ventilation systems in various industrial settings. With its versatile applications and easy maintenance, this motor is a valuable investment for any business looking to improve the performance and efficiency of their equipment.

Contact Us
  • Parameter
  • Installation Dimension Drawings
Parameter
Type Power
 (KW)		 Current
(A)		 Speed
r/min		 Eff% Power Factor
cosΦ		 Stall Torque
Rated Torque
(Tst/Tn)		 Locked-rotor current
Rated current
(Ist/In)		 Maximum Torque
Rated Torque
(Tmax/Tn)		 Noise
(A)		 Weight
(KG)
Y2-63M1-2  0.18  0.53  2720  65.0  0.80  2.3  5.5  2.2  61  4.5
Y2-63M2-2  0.25  0.69  2720  68.0  0.81  2.3  5.5  2.2  61  4.7
Y2-71M1-2  0.37  1.01  2755  69.0  0.81  2.3  6.1  2.2  64  6
Y2-71M2-2  0.55  1.38  2790  74.0  0.82  2.3  6.1  2.3  64  6.3
Y2-80M1-2  0.75  1.77  2745  75.0  0.83  2.2  6.1  2.3  67  16
Y2-80M2-2  1.1  2.61  2835  76.2  0.87  2.2  6.9  2.3  67  17
Y2-90S-2  1.5  3.46  2850  78.5  0.84  2.2  7.0  2.3  72  20
Y2-90L-2  2.2  4.85  2855  81.0  0.85  2.2  7.0  2.3  72  23
Y2-100L-2 3  6.34  2860  82.6  0.87  2.2  7.5  2.3  76  30
Y2-112M-2 4  8.2  2880  84.2  0.88  2.2  7.5  2.3  77  41
Y2-132S1-2  5.5  11.1  2900  85.7  0.88  2.2  7.5  2.3  80  27.5
Y2-132S2-2  7.5  14.9  2900  87.0  0.88  2.2 7.5  2.3  80  60.5
Y2-160M1-2 11  21.2  2930  88.4  0.89  2.2  7.5  2.3  86  107
Y2-160M2-2 15  28.6  2930  89.4  0.89  2.2  7.5  2.3  86  114
Y2-160L-2  18.5  34.7  2930  90.0  0.90  2.2  7.5  2.3  86  133
Y2-63M1-4  0.12  0.44  1310  57  0.72  2.1  4.4  2.2  52  4.5
Y2-63M2-4  0.18  0.62  1310  60  0.73  2.1  4.4  2.2  52  4.7
Y2-71M1-4  0.25  0.79  1345  65  0.74  2.1  5.2  2.2  55  6
Y2-71M2-4  0.37  1.12  1340  67  0.75  2.1  5.2  2.2  55  6.3
Y2-80M1-4  0.55  1.57  1390  71  0.75  2.4  5.2  2.3  58  15
Y2-80M2-4  0.75  2.05  1380  73  0.76  2.3  6.0  2.3  58  15.5
Y2-90S-4  1.1  2.85  1390  76.2  0.77  2.3  6.0  2.3  61  19
Y2-90L-4  1.5  3.75  1400  78.5  0.78  2.3  6.0  2.3  61  23
Y2-100L1-4  2.2  5.09  1420  80  0.81  2.3  7.0  2.3  64  29
Y2-100L2-4 3  6.78  1410  82.6  0.82  2.3  7.0  2.3  64  31
Y2-112M-4 4  8.8  1435  84.2  0.82  2.3  7.0  2.3  65  41
Y2-132S-4  5.5  11.7  1440  85.7  0.83  2.3  7.0  2.3  71  63.5
Y2-132M-4  7.5  15.6  1450  87  0.84  2.3  7.0  2.3  71  72

Type Power
 (KW)		 Current
(A)		 Speed
r/min		 Eff% Power Factor
cosΦ		 Stall Torque
Rated Torque
(Tst/Tn)		 Locked-rotor current
Rated current
(Ist/In)		 Maximum Torque
Rated Torque
(Tmax/Tn)		 Noise
(A)		 Weight
(KG)
Y2-160M-4 11  22.5  1460  88.4  0.84  2.2  7.0  2.3  75  110
Y2-160L-4 15  30  1460  89.4  0.85  2.2  7.5  2.3  75  129
Y2-71M1-6 0.18  0.74  870  56  0.66  1.9  4.4  2.0  52  6
Y2-71M2-6 0.25  0.95  870  59  0.68  1.9  4.4  2.0  52  6.3
Y2-80M1-6 0.37  1.3  880  62  0.70  1.9  4.7  2.0  54  15
Y2-80M2-6 0.55  1.8  880  65  0.72  1.9  4.7  2.1  54  16
Y2-90S-6 0.75  2.29  905  69  0.72  2.0  5.3  2.1  57  20
Y2-90L-6 1.1  3.18  905  72  0.73  2.0  5.5  2.1  57  23
Y2-100L-6 1.5  4  920  76  0.72  2.0  5.5  2.1  61  29
Y2-112M-6 2.2  5.6  935  79  0.76  2.0  6.5  2.1  65  41
Y2-132S-6 3  7.4  960  81  0.76  2.1  6.5  2.1  69  59
Y2-132M1-6 4  9.75  960  82  0.76  2.1  6.5  2.1  69  66
Y2-132M2-6 5.5  12.9  960  84  0.77  2.1  6.5  2.1  69  76.5
Y2-160M-6 7.5  17.2  970  86  0.77  2.1  6.5  2.1  73  106
Y2-160L-6 11  24.5  970  87.5  0.78  2.1  6.5  2.1  73  122
Y2-80M1-8 0.18  0.83  645  51  0.61  1.9  3.3  1.9  52  15
Y2-80M2-8 0.25  1.1  645  54  0.61  1.9  3.3  1.9  52  16
Y2-90S-8 0.37  1.49  675  62  0.61  1.9  4  1.9  56  20
Y2-90L-8 0.55  2.17  680  63  0.61  2  4  2  56  23
Y2-100L1-8 0.75  2.43  680  70  0.67  2  4  2  59  29
Y2-100L2-8 1.1  3.36  680  72  0.69  2  5  2  59  31
Y2-112M-8 1.5  4.4  690  74  0.70  2  5  2  61  41
Y2-132S-8 2.2  6.0  710  79  0.71  2  6  2  64  61
Y2-132M-8 3  7.8  710  80  0.73  2  6  2  64  74
Y2-160M1-8 4  10.3  720  81  0.73  2  6  2  68  95.5
Y2-160M2-8 5.5  13.6  720  83  0.74  2  6  2  68  107
Y2-160L-8 7.5  17.8  720  85.5  0.75  2  6  2  68  128
