SPEED 750RPM 8-POLE 50HZ three-phase asynchronous motor

SPEED 750RPM 8-POLE 50HZ three-phase asynchronous motor

The SPEED 750RPM 8-POLE 50HZ three-phase asynchronous motor is part of the YE4 Series high-efficiency three-phase asynchronous motors. Engineered to deliver reliable and efficient performance, this motor is designed to drive a variety of general-purpose machinery. It operates at 750 RPM with an 8-pole configuration, making it suitable for tasks requiring consistent power over extended periods. The motor's application spans across multiple industries including petrochemical, pharmaceutical, mining, and more.

Advantages of the SPEED 750RPM 8-POLE 50HZ Three-Phase Asynchronous Motor

1. High Efficiency
   - This motor is designed to operate with minimal energy loss, contributing to overall energy savings.
   - Its efficiency helps reduce operational costs while providing power output, making it an economically viable option for various industrial applications.

2. Quiet Operation
   - The motor operates with reduced noise levels, which is ideal for environments where noise control is a priority.
   - Low noise not only improves the working environment but also reduces the impact on surrounding areas.

3. Durable and Reliable
   - Built with robust materials and engineering, the motor is designed for long-term performance with minimal maintenance.
   - It operates reliably across different working conditions, ensuring consistent output without unexpected breakdowns.

Features of the SPEED 750RPM 8-POLE 50HZ Three-Phase Asynchronous Motor

1. Efficient Energy Use
   - Energy Saving: The motor is optimized for energy efficiency, ensuring lower energy consumption during operations.
   - Cost Effective: Reducing energy usage, helps lower operational costs and makes it a practical investment for companies seeking to minimize expenses.

2. Compact and Attractive Design
   - Sleek Appearance: The motor features a modern design that can integrate easily into various mechanical setups without compromising aesthetics.
   - Space-Saving: Its compact size allows it to fit into machinery and systems where space is limited, without sacrificing performance.

3. Smooth and Quiet Performance
   - Low Vibration: The 8-pole design ensures reduced vibration levels, contributing to stable performance and less wear on connected components.
   - Noise Reduction: Its construction helps minimize operational noise, making it suitable for noise-sensitive environments like laboratories or hospitals.

4. Innovative Construction
   - Advanced Engineering: The motor's structure is designed to enhance performance and longevity, incorporating cutting-edge materials and technology.
   - Reliability: With a novel design, it offers greater reliability over conventional motors, ensuring consistent service even under demanding conditions.

5. Temperature and Altitude Adaptability
   - Wide Temperature Range: The motor can operate in environments with varying seasonal temperatures, with a working range from -15°C to +40°C.
   - Altitude Tolerance: Suitable for use in locations up to 1000 meters above sea level, this motor adapts to different geographic conditions.

Applications of the SPEED 750RPM 8-POLE 50HZ Three-Phase Asynchronous Motor

- Compressor Systems: Ideal for driving compressors in industrial environments, ensuring efficient operation in applications like air and gas compression.
- Ventilation Systems: Powers fans and blowers in various industries, providing continuous airflow in factories, mines, and other large-scale facilities.
- Pumping Stations: Operates water pumps for municipal, agricultural, and industrial applications, maintaining reliable water flow and pressure.
- Petrochemical Industry: Suited for demanding environments, it drives machinery in petrochemical plants, contributing to the processing of chemicals and raw materials.

The SPEED 750RPM 8-POLE 50HZ three-phase asynchronous motor is designed for versatility and reliability across multiple industries. Its efficiency, quiet operation, and robust construction make it an choice for applications where performance and durability are crucial.

Contact Us
  • Parameter

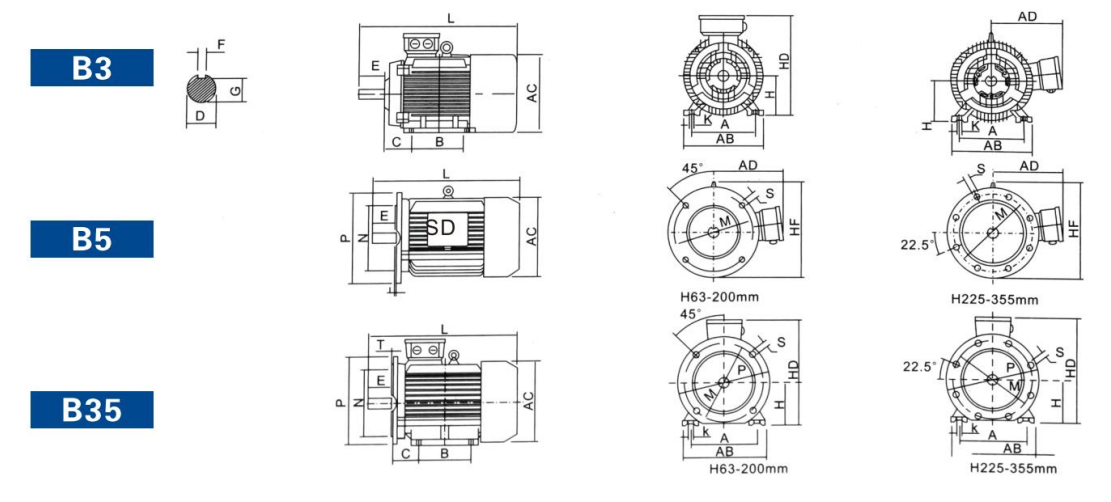

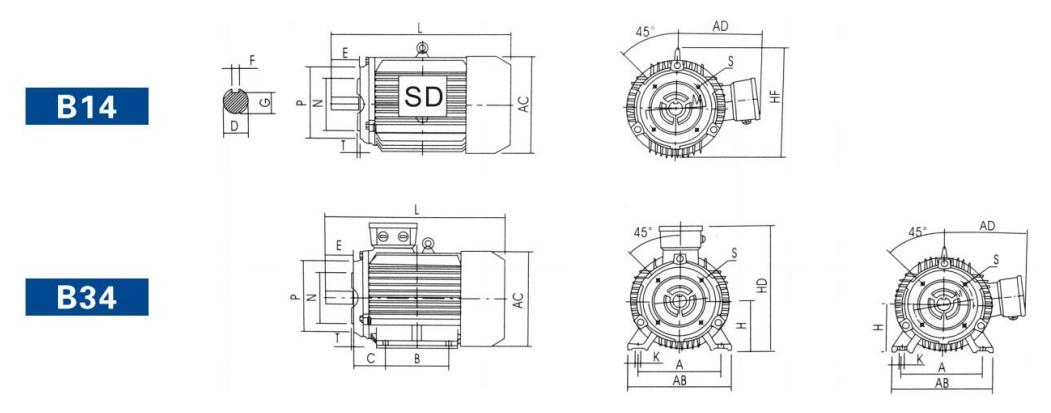

  • Installation Dimension Drawings
Parameter
Type Rated Power Rated Speed rpm Efficiency η%(IE4) Efficiency
at 75%
load
Efficiency
at 50%
load
Power Rated Current A Rated Torque Stall Torque / Rated Torque (Tn/Ts) Maximum Torque / Rated Torque (Tmax/Tn) Stall Current / Rated Current (Is/ln) Weight(kg)
factor cosФ
kW HP 380 400 415
YE4 - 712 - 8 0.12 0.18 610 62.3 62.3 61.1 0.57 0.51 0.49 0.47 1.88 1.8 1.9 2.8 13
YE4 - 801 - 8 0.18 0.25 655 67.2 67.2 65.9 0.61 0.67 0.63 0.61 2.62 1.8 1.9 3.3 17.4
YE4 - 802 - 8 0.25 0.37 655 70.8 70.8 69.4 0.61 0.88 0.84 0.81 3.65 1.8 1.9 3.3 20
YE4 - 90S - 8 0.37 0.5 680 74.3 74.3 72.8 0.61 1.24 1.18 1.14 5.2 1.8 1.9 4 34
YE4 - 90L - 8 0.55 0.75 680 77 77 75.5 0.61 1.78 1.69 1.63 7.72 1.8 2 4 35.5
YE4 - 100L1 - 8 0.75 1 700 78.4 78.4 76.8 0.67 2.17 2.06 1.99 10.2 1.8 2 4 40
YE4 - 100L2 - 8 1.1 1.5 700 80.8 80.8 79.2 0.69 3 2.85 2.74 15 1.8 2 5 45
YE4 - 112M - 8 1.5 2 710 82.6 82.6 80.9 0.7 3.94 3.74 3.61 20.2 1.8 2 5 50
YE4 - 132S - 8 2.2 3 720 84.5 84.5 82.8 0.71 5.57 5.29 5.1 29.2 1.8 2 6 78
YE4 - 132M1 - 8 3 4 720 85.9 85.9 84.2 0.73 7.27 6.91 6.66 39.8 1.8 2 6 88
YE4 - 160M - 8 4 5.5 730 87.1 87.1 85.4 0.73 9.66 9.08 8.75 53.2 1.9 2 6 138
YE4 - 160M2 - 8 5.5 7.5 730 88.3 88.3 86.5 0.74 12.8 12.1 11.7 72 1.9 2 6 150
YE4 - 160L - 8 7.5 10 730 89.3 89.3 87.5 0.75 17 16.2 15.6 98.1 1.9 2 6 170
YE4 - 180L - 8 11 15 735 90.4 90.4 88.6 0.75 24.7 23.4 22.6 142.9 2 2 6.5 230
YE4 - 200L - 8 15 20 735 91.2 91.2 89.4 0.76 32.9 31.2 30.1 194.9 2 2 6.6 280
YE4 - 225S - 8 18.5 25 735 91.7 91.7 89.9 0.76 40.3 38.2 36.9 240.4 1.9 2 6.6 302
YE4 - 225M - 8 22 30 735 92.1 92.1 90.3 0.78 46.5 44.2 42.6 285.9 1.9 2 6.6 335
YE4 - 250M - 8 30 40 735 92.7 92.7 90.8 0.79 62.2 59.1 57 389.8 1.9 2 6.5 400
YE4 - 280S - 8 37 50 740 93.1 93.1 91.2 0.79 76.4 72.6 70 477.5 1.9 2 6.6 520
YE4 - 280M - 8 45 60 740 93.7 93.7 91.5 0.79 92.7 88 84.8 590.7 1.9 2 6.6 600
YE4 - 315S - 8 55 75 740 94.3 94.3 91.8 0.81 110 105 101 708 1.8 2 6.6 1010
YE4 - 315M - 8 75 100 740 94.2 94.2 92.3 0.81 149 142 137 967.9 1.8 2 6.2 1140
YE4 - 315L1 - 8 90 125 740 94.4 94.4 92.5 0.82 177 168 162 1161 1.8 2 6.4 1175
YE4 - 315L2 - 8 110 150 740 94.7 94.7 92.8 0.82 215 204 197 1420 1.8 2 6.4 1210
YE4 - 355M1 - 8 132 180 740 94.9 94.9 93 0.82 258 245 236 1704 1.8 2 6.4 2050
YE4 - 355M2 - 8 160 220 740 95.1 95.1 93.2 0.82 312 296 285 2065 1.8 2 6.4 2200
YE4 - 355L - 8 200 270 740 95.4 95.4 93.5 0.83 384 365 351 2581 1.8 2 6.4 2300
